My mounting kit

Quote:

---

Originally Posted by teyber

the evaporator is under that insulation. those two half peice foamy things "sandwhich" the evap and the lip machined in it fits over the evaporator. so take off enough of that insulation to show just the evap, then slide over the mount (the hold down plate and the muff) then put the two styrofoam type things over the evap, then slide down the mounting till you have a tight fit :) then post a picture of it so you som1 can see if all is in order :)

cheers

---

Thanks Teyber!

When you say "take of that insulation to show just the evap" you mean cut it off with scissors to show this: http://i44.tinypic.com/mhyo42.jpg

So the sandwich will be made on the base of the evap leaving most of the head exposed? On pic one you can see that the evap is not a tight fit on the plastic head so how should I insulate the tip there?

Quote:

---

Originally Posted by Jor3lBR

Thanks Teyber!

When you say "take of that insulation to show just the evap" you mean cut it off with scissors to show this: http://i44.tinypic.com/mhyo42.jpg

So the sandwich will be made on the base of the evap leaving most of the head exposed? On pic one you can see that the evap is not a tight fit on the plastic head so how should I insulate the tip there?

---

in image 2 you have the mount and muff the wrong way round the evap goes like in the image and the foam holds it in place

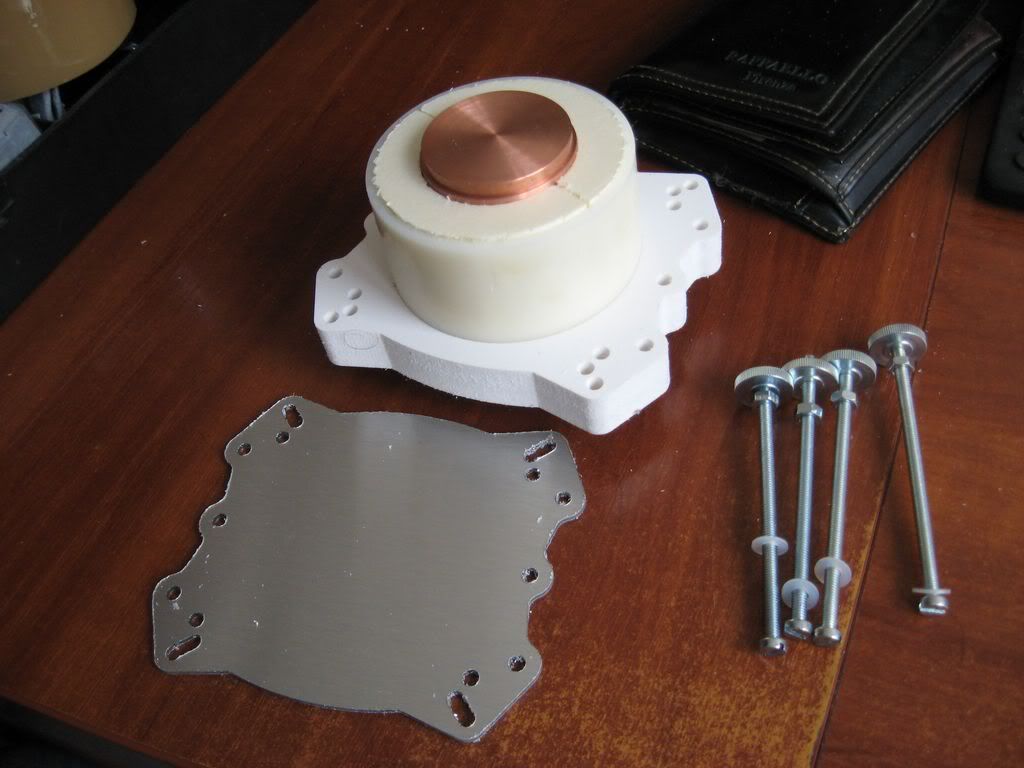

you need to slide the insolation back off the evap and suction line slide the evap thru the mount and muff then fit the foam over the evap then slide the evap w/foam in to the muff then it should look like below :)
it so easy you wil kick your slef after :)

http://i90.photobucket.com/albums/k2...n_IMG_0244.jpg

Quote:

---

Originally Posted by EvoCarlos

in image 2 you have the mount and muff the wrong way round the evap goes like in the image and the foam holds it in place
you need to slide the insolation back off the evap and suction line slide the evap thru the mount and muff then fit the foam over the evap then slide the evap w/foam in to the muff then it should look like below :)
it so easy you wil kick your slef after :)

---

Ohhh LoL I see I had it the wrong way :ROTF:

Quote:

---

Originally Posted by Jor3lBR

Ohhh LoL I see I had it the wrong way :ROTF:

---

As I know mouunitng works good, pls post some pics Jor3lBR :D

Quote:

---

Originally Posted by Duniek

As I know mouunitng works good, pls post some pics Jor3lBR :D

---

Hey Duniek I got the mount fitted now I'm finishing insulation to test it:


http://i42.tinypic.com/m7w31i.jpg

I finally got to mounting it again but I have a quick question:

There are no springs on the screw kit so how much should one tighten the thumb screws without braking the mobo in half and without leaving a tiny loose space between the evap and the cpu surface?

Thanks.

you must "feel" pressure
not too much bcoz high pressure can damage foam around of evap

Hey Duniek, could you please respond to the PM I send you? :)

Quote:

---

Originally Posted by Jack

Hey Duniek, could you please respond to the PM I send you? :)

---

sorry
database fails, and I lost some PM's

your packet was shipped some time ago, sorry for delay

Duniek do you have the tracking for mine too? Can you send me a PM?

vapo LS, NB adapter (61-75mm)
http://img179.imageshack.us/img179/3010/vaponb.jpg

Quote:

---

Originally Posted by Duniek

this evap good hold quad :D
but I will make 4 and 5 mm base for test after new year



:D:D:D

---

Do you happen to still have socket 775 mounting kits for either mach II gt, or Vapochill LS? I have been trying to find them, thanks in advance!

Quote:

---

Originally Posted by Exempt

Do you happen to still have socket 775 mounting kits for either mach II gt, or Vapochill LS? I have been trying to find them, thanks in advance!

---

yes, always on stock (fits to 775/1366 and am2/am3)
just lmk on PM
