07-12-2011, 06:07 AM
Raja@ASUS

Quote:

Originally Posted by zeist

Yes, every time i switch i get a couple of reboot with asus rog connector updating himself "do not shutdown etc etc".
About to array metadata dunno... told you, even with both arrays unplugged, and i really mean plugged out from the case, even a single new disk get the "not bootable" error if controller is enabled as raid.

You can try flashing both BIOSes to 1850 and see if that helps. If not submit an RMA request.

-Raja
07-12-2011, 06:17 AM
zeist

Quote:

Originally Posted by Raja@ASUS

You can try flashing both BIOSes to 1850 and see if that helps. If not submit an RMA request.

-Raja

Gah... though it works perfectly with bioses previous 1409 it could be an hardware issue?
Ok, i'll try this evening, otherwise i'll have to submit an RMA and rip apart my just finished new water cooled rig :/
07-12-2011, 06:28 AM
deachus

Quote:

Originally Posted by zeist

Gah... though it works perfectly with bioses previous 1409 it could be an hardware issue?
Ok, i'll try this evening, otherwise i'll have to submit an RMA and rip apart my just finished new water cooled rig :/

You got me thinking when you said you just finished your new watercooled rig. What case are you using? Does it have Hot Swap bays and backplane like the Corsair 800D? I had a problem with my Corsair 800D when I first installed my MIVE where it would not recognize my RAID 0 config. I ended up getting RMA'd a NEW version of the backplane and it then worked great. Just a suggestion.
07-12-2011, 06:36 AM
zeist

Quote:

Originally Posted by deachus

You got me thinking when you said you just finished your new watercooled rig. What case are you using? Does it have Hot Swap bays and backplane like the Corsair 800D? I had a problem with my Corsair 800D when I first installed my MIVE where it would not recognize my RAID 0 config. I ended up getting RMA'd a NEW version of the backplane and it then worked great. Just a suggestion.

Oh, actually Corsair 800D is what i have. But thinking about it, both vertex 3 ssd are installed in the lower compartment and connected directly to the sata3 ports, and i've also tested everything with just them removing the other raid1 array that is connected through the backpanel. Thanks for the hint anyway deachus.
07-12-2011, 06:51 AM
deachus

Hmm, I guess not the problem then. If I connected both my SSD's directly to SATA ports on Board and bypassed backplane then I was fine which is how I discovered problems with backplane. Corsair sent me the new SATA3 compatible backplane which works great now on the Hot Swap bays with my RAID 0 array. I use the Intel SATA connectors on the Board though.
07-12-2011, 07:02 AM
zeist

Quote:

Originally Posted by deachus

Hmm, I guess not the problem then. If I connected both my SSD's directly to SATA ports on Board and bypassed backplane then I was fine which is how I discovered problems with backplane. Corsair sent me the new SATA3 compatible backplane which works great now on the Hot Swap bays with my RAID 0 array. I use the Intel SATA connectors on the Board though.

What leave me wonder is that the very same configuration works absolutely smoothly with bios 1303 and previous ones (also with impressive raid0 performances). With bios 1409, and 1850 and intel controlled configured as raid, without touching a single wire simply my disks are seens as "not bootable".
This evening i'll try to reflash both bios with 1850. I also tried to load the latest IRST drivers during win installation but the issue persist.
07-12-2011, 07:10 AM
Raja@ASUS

Quote:

Originally Posted by zeist

What leave me wonder is that the very same configuration works absolutely smoothly with bios 1303 and previous ones (also with impressive raid0 performances). With bios 1409, and 1850 and intel controlled configured as raid, without touching a single wire simply my disks are seens as "not bootable".
This evening i'll try to reflash both bios with 1850. I also tried to load the latest IRST drivers during win installation but the issue persist.

Cool, try 1850 on both BIOS chips, and see what happens.

-Raja
07-12-2011, 11:49 AM
zeist

Bingo:
Flashing both bios didn't worked.
I disabled everything on "onboard devices" and suddenly win7 booted.
Then i started to enable stuff again and isolated the problem into "oprom" option of marvell controller, if this thing is enabled it completely bypass the intel controller in some freaking way and prevent me to boot or install anything.
Just to let you know the only thing i have on marvell controller is a plextor DVD reader/writer (i kept the other two intel sata2 port for another possible raid1 array in the future).
Still wondering exactly why happened this.

Anyway thanks to Raja and Deachus for the support

Update:
1850 is something unbelievable.
With 1303 i got 5ghz 100x50 with 1,515 or 1,520 vcore, tweaking vccio to 1,175, LLC 75% and VRM fixed 350
With 1850 i get 5ghz 100x50 with vcore (auto) 1,480, vccio auto, LCC 75%, VRM fixed 350, everything else auto, gskill 2133mhz 9 10 9 24 at 1,5v, stable with superpi, prime95 Linx and 3dmark vantage.

Not bad for a bios upgrade, not bad...
07-13-2011, 05:08 AM
deachus

That's weird but I am glad you got it figured out. I haven't had a chance to retest LinX and Prime95 with 1850 but I am running 5Ghz right now at 1.48 also with no issues. Will do a Prime95 and LinX overnight and see if I can lower vcore.
07-13-2011, 05:27 AM
zeist

Honestly i'm still perplexed. I'll tell you that also new bios resolved some stability issues (shuttering) that i was blaming on Vertex ssd.
Bios 1850 is smooth, stable and awesome, at least from my perspective. I still have to figure out how/why Marvell controller was causing such conflict with Intel one (and i also have to move my dvd recorder on one of the intel ports).
07-14-2011, 04:43 AM
lysyn123

How to enable Offset Mode?
07-14-2011, 06:01 AM
Raja@ASUS

In the Digi+ VRM Section of BIOS, Phase Control needs to be set changed from Extreme to Standard, Optimized or Manual in order for Offset Mode to become available in the CPU Voltage menu.

-Raja
07-14-2011, 07:38 AM
lysyn123

Tnx.
07-15-2011, 01:11 PM
nicktran111467

I have a question for Raja@asus,
I have not been able to use PCIex1 sata controllers on one of the PCIeX8/16. Is this a limitation of the board or is there any bios option that I can use to make it work?
07-17-2011, 10:51 AM
_AntLionBR_

I have a problem here, actually a friend of mine.
Every time he gets a time without touching the PC when he returns to play with it a PC is "freezing" (error AE), the M4E seems to not detect the SSD it uses, there to solve the problem he has to turn off the PSU and turn it back on, then the problem is solved. Does anyone have any idea what might be happening? Thank you!
07-17-2011, 12:57 PM
zeist

Quote:

Originally Posted by _AntLionBR_

I have a problem here, actually a friend of mine.
Every time he gets a time without touching the PC when he returns to play with it a PC is "freezing" (error AE), the M4E seems to not detect the SSD it uses, there to solve the problem he has to turn off the PSU and turn it back on, then the problem is solved. Does anyone have any idea what might be happening? Thank you!

By chance your friend ssd is OCZ?
07-17-2011, 01:06 PM
_AntLionBR_

Quote:

Originally Posted by zeist

By chance your friend ssd is OCZ?

It is. And a Vertex 3 120GB. A problem with that?
07-17-2011, 01:19 PM
zeist

Quote:

Originally Posted by _AntLionBR_

It is. And a Vertex 3 120GB. A problem with that?

Mhm, yes, i suggest you to give a look both and ocz forum as much as a couple of thread on xtremesystems too (if i remember well).
Fact is: i had the same problem, OCZ released a 2.09 firmware to fix the issue. For me the fix worked. Mind that to avoid further problems OCZ reccomend to secure erase, format, and reinstall everything on the disk after you upgraded firmware, and for what i can tell it's actually needed.
07-17-2011, 01:57 PM
_AntLionBR_

Quote:

Originally Posted by zeist

Mhm, yes, i suggest you to give a look both and ocz forum as much as a couple of thread on xtremesystems too (if i remember well).
Fact is: i had the same problem, OCZ released a 2.09 firmware to fix the issue. For me the fix worked. Mind that to avoid further problems OCZ reccomend to secure erase, format, and reinstall everything on the disk after you upgraded firmware, and for what i can tell it's actually needed.

Thank you for answering. I'll tell him to update the firmware to see if it solves this problem. After I give a feedback here. Thanks again!
07-17-2011, 01:59 PM
Praz

Quote:

Originally Posted by _AntLionBR_

It is. And a Vertex 3 120GB. A problem with that?

Hot-plugging needs to be enable for the port the Vertex is connected to.
07-17-2011, 05:56 PM
zsamz_

just flashed new bios into gene-z and blk + memory clocking has improved

voltage control is great:up:

tks shamino for havin a hand in this board:up:

only thing missin is faster boot
07-19-2011, 05:52 AM
lysyn123

VTT in the Maximus IV Extreme is? - vccio?
07-19-2011, 09:22 AM
deachus

Quote:

Originally Posted by lysyn123

VTT in the Maximus IV Extreme is? - vccio?

Yes, VCC I/O voltage and VCCSA is the system agent voltage.
07-19-2011, 11:36 AM
Janus67

Quote:

Originally Posted by _AntLionBR_

I have a problem here, actually a friend of mine.
Every time he gets a time without touching the PC when he returns to play with it a PC is "freezing" (error AE), the M4E seems to not detect the SSD it uses, there to solve the problem he has to turn off the PSU and turn it back on, then the problem is solved. Does anyone have any idea what might be happening? Thank you!

Another possibility with AE is if you set the motherboard to have CPU PLL Overvoltage turned on and put it to sleep (which it sounds like it is idling to sleep) when it tried to return it can't give the right voltage apparently and fails to come back. My only solution was to disable pll overvoltage unless I was going for benchmarking OCs, otherwise I keep it at around 4.5 where it isn't needed.
07-20-2011, 11:10 PM
psyside

Quote:

Originally Posted by Raja@ASUS

Bear in mind the Intel max recommended voltages are based on stock operating frequency (current draw increases with frequency).

-Raja

Care to elaborate this? ? :) thanks!
07-21-2011, 12:07 AM
Raja@ASUS

Quote:

Originally Posted by psyside

Care to elaborate this? ? :) thanks!

Every clock cycle consumes power; more clock cycles over time = more power consumed. That's why the voltages stipulated in the white papers are based upon stock operating frequency only.

-Raja
07-21-2011, 10:04 AM
OcAddict

Hi guys,

Got myself the ASUS Maximus IV Extreme, installed it, hooked everything up and installed windows 7 64-bit.
All went great but i have 1 device that i can't get a driver installed for, PCI Simple Communications-controller.
Installed all drivers and utility's with the support CD, ASUS InstALL but no mather what i do this thing will not install.
Googled for it but didn't find a fix for it, so i thought why not ask here :D

Update: Never mind, issue solved. It was the chipset driver that wasn't installed properly :shrug:
07-21-2011, 11:06 AM
zsamz_

Quote:

Originally Posted by Raja@ASUS

Every clock cycle consumes power; more clock cycles over time = more power consumed. That's why the voltages stipulated in the white papers are based upon stock operating frequency only.

-Raja

in simple words you can only push the nitro button so many times before your engine blows:p:

every cpu is different some you can push n some you cant
07-23-2011, 08:28 PM
andressergio

well zsamz i will get the mive next week
from some friends i got an amazing input on the board hope its a great one

i will keep my UD7 i love it

cheers
Sergio
07-23-2011, 08:31 PM
zsamz_

Quote:

Originally Posted by andressergio

well zsamz i will get the mive next week
from some friends i got an amazing input on the board hope its a great one

i will keep my UD7 i love it

cheers
Sergio

when you get the MIVE you wont touch the ud7;)
07-24-2011, 11:52 AM
Hampti

He man. what are the points for a high bclk on den mive? am i only been stopped from the cpu or also the mainboard? could it be that the mive ist the bottleneck? i've only reached 104,7 to 105,2 with an mive and 3 different 2500k (horrible chips x51+x52). do you think its only the cpu or also some settings?
07-24-2011, 02:25 PM
zsamz_

Quote:

Originally Posted by Hampti

He man. what are the points for a high bclk on den mive? am i only been stopped from the cpu or also the mainboard? could it be that the mive ist the bottleneck? i've only reached 104,7 to 105,2 with an mive and 3 different 2500k (horrible chips x51+x52). do you think its only the cpu or also some settings?

you need to find the right settings
having a good chip helps

read http://kingpincooling.com/forum/show...2779#post12779

post your settings maybe we find ..... somethin
07-24-2011, 03:57 PM
burningrave101

Has anyone tested the 0654 Beta BIOS for the Extreme-Z yet?
07-24-2011, 10:14 PM
Hampti

I've tried shaminos tweaks. Thanks but that isn't the problem i think. I will try it with another cpu at the evening and will post my settings here. thanks a lot.
07-24-2011, 10:53 PM
Sauron_Vie

Quote:

Originally Posted by Hampti

I've tried shaminos tweaks. Thanks but that isn't the problem i think. I will try it with another cpu at the evening and will post my settings here. thanks a lot.

i am sure u will fix this problem ;)
07-25-2011, 09:42 AM
seba84_2005

New 1902 Bios for M4E ;)

EDIT: official beta bios provide a "Xtreme Tweaking" option for 3D01 on the BIOS.

http://www.mediafire.com/?cdd1qex0ma6k1e1
07-25-2011, 09:49 AM
Sauron_Vie

changelog / description for 1902 ??
07-25-2011, 05:54 PM
stasio

Maximus IV Extreme 1902,
Maximus-IV-Extreme-Z-ASUS-0604,
MaximusIV-GENE-Z-ASUS-0603 (beta).

http://theoverclocker.it/ASUS3D01/3D01-2.rar
07-26-2011, 03:54 AM
psyside

Few questions guys,

1.My NF 200 voltage is going from 0.000 to 0.007@ BIOS is this normal?
2.LN2 mode seems to be enabled? and its grey out like i cant disable it? how to turn off?
3. Chasis fan speed 1& 2 - NA?

BIOS version is 1204, is this BIOS any good?

Also did they fixed Intel RST issues or i should install them? i see Jmicron controler in BIOS, what is for? can i disable this ****? as far as i know the sata 3 ports are both Intel, and the sata 6 are 2x Intel and 2x Marvel (which i think to disable)
07-27-2011, 01:40 AM
OcAddict

Did anyone experience this, mouse and keybord hooked up in the usb ports beside the ps2 port and sometimes the mouse and keybord power off for just 1 second and then come back,
everything works again but is very annoying :confused:
07-28-2011, 09:02 AM
donmarkoni

Quote:

Originally Posted by psyside

Few questions guys,

1.My NF 200 voltage is going from 0.000 to 0.007@ BIOS is this normal?
2.LN2 mode seems to be enabled? and its grey out like i cant disable it? how to turn off?
3. Chasis fan speed 1& 2 - NA?

BIOS version is 1204, is this BIOS any good?

Also did they fixed Intel RST issues or i should install them? i see Jmicron controler in BIOS, what is for? can i disable this ****? as far as i know the sata 3 ports are both Intel, and the sata 6 are 2x Intel and 2x Marvel (which i think to disable)

1. It is normal. If not used, NF200 is turned off.
2. There is a switch near Start button.
3. What do you mean by that? You have 3 wire fans connected and it's not showing speed?

BIOS 1204 is rather old, try newer.

I don't know about RST, as I don't use it. JMicron is for ESATA ports on the back panel, you can disable it, if you don't use it.

Quote:

Originally Posted by OcAddict

Did anyone experience this, mouse and keybord hooked up in the usb ports beside the ps2 port and sometimes the mouse and keybord power off for just 1 second and then come back,
everything works again but is very annoying :confused:

I did. And yes, it's annoying. :mad:
07-28-2011, 11:42 AM
psyside

Can anyone PLEASE tell me how the *uck should i turn off LN2 mode???????? in BIOS i can't find the setting like 3 days already it says: LN2 mode - enable but i can't even enter that section...i already posted this at 3 different forums and still no answer...:mad:

Also in VRM options i can't find the duty control setting in order to change it to extreme :(
07-28-2011, 11:44 AM
Olly_K

as has already been said, there is a SWITCH on the motherboard by the start/power bottom, just towards the bottom right of it. you can't miss it !!!!
07-28-2011, 11:47 AM
psyside

Quote:

Originally Posted by Olly_K

as has already been said, there is a SWITCH on the motherboard by the start/power bottom, just towards the bottom right of it. you can't miss it !!!!

Thanks alot bro, can you also tell me where is the duty control setting located in BIOS? (1850) thanks!

EDIT: Im sorry guys, i didn't see donmarkoni already answer me about LN2 mode option sry really...:up:
07-28-2011, 12:39 PM
Olly_K

sorry, I can't answer your other question, hopefully a pro will soon :)
07-28-2011, 06:17 PM
psyside

5 Attachment(s)

Ok no worries, btw is 1 hour Aida 64 stability test enough for some general idea of system stability? i even included the HDD's :)

EDIT, Is 1.375 good vcore for 4.8? im semi stable at that voltage, what i mean by semi stable is that i havent have enough time to test my system, like 15 mins linx (all memory settings with SP1- AVX) and Aida 64 - 30 minutes/1hour tests.

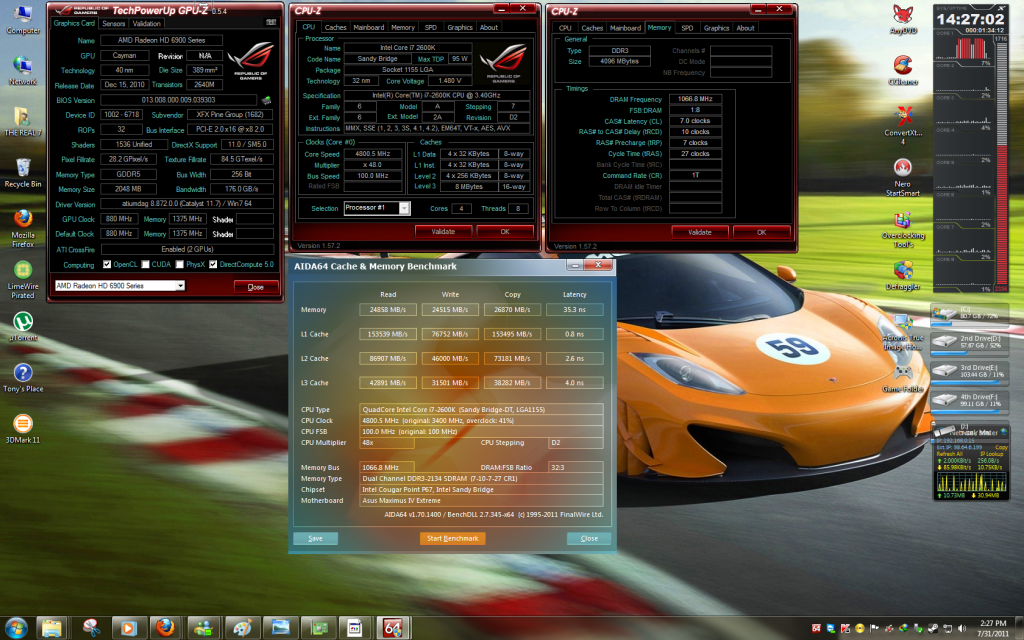

Here are my settings,

Attachment 118322

Attachment 118323

Attachment 118324

Attachment 118325

Attachment 118326

Are this settings good? what would you guys suggest to change for better results/stability/vcore?

Also strange thing is that i dont see my SSD in boot options...(last pic) anyone got idea what is the cause for it? thanks :)

Note: I'm running with HT on.
07-29-2011, 05:28 AM
psyside

2 Attachment(s)

Damn, fast error on OCCT, is this gpu related? im on backup crappy 8400GS atm, is this errror related to it or? vcore is (during this test) 1.395 in BIOS, @4.8....also OCCT show my cpu settings as unknown? : /

Attachment 118346

Attachment 118347

EDIT: Sorry for thread spamming guys.
07-29-2011, 07:14 AM
andressergio

well yesterday at 11:30 received this mobo and 2 chips random pick

a costa rica batch that stops on x54
and i still cant believe my eyes i got a x59 chip !!!!!!!!! yes it post and tries to go into windows but obvious i dont want to know the volts it may need and cooling

heres some screens of my first boot with my ASUS expert :)

http://img828.imageshack.us/img828/140/5500spi1.png

http://img163.imageshack.us/img163/7439/60236891.jpg

http://img844.imageshack.us/img844/994/77195438.jpg

btw batch of the x59 is #L045B836 Malay

cheers to all
Sergio
07-29-2011, 08:11 AM
l0ud_sil3nc3

Quote:

Originally Posted by andressergio

well yesterday at 11:30 received this mobo and 2 chips random pick

a costa rica batch that stops on x54
and i still cant believe my eyes i got a x59 chip !!!!!!!!! yes it post and tries to go into windows but obvious i dont want to know the volts it may need and cooling

heres some screens of my first boot with my ASUS expert :)

btw batch of the x59 is #L045B836 Malay

cheers to all
Sergio

I told you would like the Asus board:shrug:
07-29-2011, 08:38 AM
the_real_7

Quote:

Originally Posted by andressergio

well yesterday at 11:30 received this mobo and 2 chips random pick

a costa rica batch that stops on x54
and i still cant believe my eyes i got a x59 chip !!!!!!!!! yes it post and tries to go into windows but obvious i dont want to know the volts it may need and cooling

heres some screens of my first boot with my ASUS expert :)

http://img828.imageshack.us/img828/140/5500spi1.png

http://img163.imageshack.us/img163/7439/60236891.jpg

http://img844.imageshack.us/img844/994/77195438.jpg

btw batch of the x59 is #L045B836 Malay

cheers to all
Sergio

nice new setup look as if its going to kick some ass with that new chip ;)
07-29-2011, 08:42 AM
MikeMK

Quote:

Originally Posted by andressergio

well yesterday at 11:30 received this mobo and 2 chips random pick

a costa rica batch that stops on x54
and i still cant believe my eyes i got a x59 chip !!!!!!!!! yes it post and tries to go into windows but obvious i dont want to know the volts it may need and cooling

heres some screens of my first boot with my ASUS expert :)

btw batch of the x59 is #L045B836 Malay

cheers to all
Sergio

Wow, u r lucky with those chips! Had 4 so far and best I can get is 52x lol!
07-29-2011, 09:25 AM
PolRoger

Quote:

Originally Posted by andressergio

well yesterday at 11:30 received this mobo and 2 chips random pick

a costa rica batch that stops on x54
and i still cant believe my eyes i got a x59 chip !!!!!!!!! yes it post and tries to go into windows but obvious i dont want to know the volts it may need and cooling

heres some screens of my first boot with my ASUS expert :)

btw batch of the x59 is #L045B836 Malay

cheers to all

Sergio

I've seen "Dumo" post that 57x and up (provided the chip is capable) seems to require some kind of "cold" cooling for benching purposes so I'd be interested to know if the chip can bench 56x on water and or if you can get into windows at 57x? What is the max multi for the chip with PLL overide disabled? I also think you are going to like the MIVE. :up: I'll look forward to more results from your new combo.
07-29-2011, 09:43 AM
andressergio

Quote:

Originally Posted by PolRoger

I've seen "Dumo" post that 57x and up (provided the chip is capable) seems to require some kind of "cold" cooling for benching purposes so I'd be interested to know if the chip can bench 56x on water and or if you can get into windows at 57x? What is the max multi for the chip with PLL overide disabled? I also think you are going to like the MIVE. :up: I'll look forward to more results from your new combo.

thanks my friend

love both boards, the asus is a beauty so my UD7

the chip its incredible it posts till x59 i will go to win on x56 and x57, im using a single rad cooling antec kuler 920 lol

cheers
Sergio
07-29-2011, 09:45 AM
andressergio

Quote:

Originally Posted by MikeMK

Wow, u r lucky with those chips! Had 4 so far and best I can get is 52x lol!

well i must say that lots of ppl selling this batch as there was not a single soul posting any number im the first and still cant believe it, if u harry there lots of ppl selling it very cheap

good luck !
07-29-2011, 09:52 AM
zsamz_

i told you asus is better:p:
told you the ud7 suks:yepp:

found a chip same batch as yours but i too bored with sandy to buy it
07-29-2011, 10:55 AM
andressergio

well on my UD7 boot at107bclk was easy here i dont get the skews now but i will

for now im happy with this

http://img42.imageshack.us/img42/844/pi3q.png

Uploaded with ImageShack.us
07-29-2011, 11:22 AM
andressergio

btw new bios sux 1902

my USB ports dont work, and stable benches gone...maybe its me but 1850 its a keeper

one thing i dont like is that all area around CPU gets hot that doesnt happen on the UD7, while benching i mean

cheers
Sergio
07-29-2011, 04:49 PM
andressergio

it would be very nice if ASUS can update efi BIOS on the profile OC saves...that one can save settings to a flash drive and also selecting the profile not the way that is now putting 1, 2 or 3

cheers
Sergio
07-29-2011, 05:00 PM
stasio

He,he Sergio don't post all bad things about ASUS!
07-29-2011, 05:03 PM
zsamz_

Quote:

Originally Posted by stasio

He,he Sergio don't post all bad things about ASUS!

i just wanna see andre post in gigabut thread that the ud7 suks compare to the MIVE :D
07-29-2011, 05:15 PM
stasio

Quote:

Originally Posted by zsamz_

i just wanna see andre post in gigabut thread that the ud7 suks compare to the MIVE :D

He will for sure,but Asus USB sucks......:ROTF:
07-29-2011, 06:50 PM
zsamz_

Quote:

Originally Posted by stasio

He will for sure,but Asus USB sucks......:ROTF:

asus boards just hate some mouses

had a problem with mx518 on sabertooth until i used ps2

asus n cheap mouses:(
07-29-2011, 07:08 PM
andressergio

Quote:

Originally Posted by stasio

He,he Sergio don't post all bad things about ASUS!

i will for sure still couldnt get pass 101 bclk on the mive while my asus do 107 lol but i have to admit that this board is fantastic, regulation is awesome and boots 2 times faster than my UD7 so fast man cant believe it

love both boards either way i got a good UD7

cheers mate
Sergio
07-29-2011, 07:12 PM
andressergio

Quote:

Originally Posted by zsamz_

i just wanna see andre post in gigabut thread that the ud7 suks compare to the MIVE :D

for sure i will do a nice face to face on them

for now what i see is

MIVE and UD7

amazing efi bios - normal bios
voltaje regulation amazing - using F3H i have no problems but UD7 takes way more volts
HS near CPU heats a lot - NOT ON UD7
boots like a ferrari - UD7 not its slow at post and boot
small increments of volts on all - UD7 has big jumps
just 1902 gave me problems - UD7 all but F3H

so far thats what i found for now

cheers
Sergio
07-29-2011, 07:50 PM
andressergio

testing the system :)

http://img143.imageshack.us/img143/7168/p1100485.jpg

http://img33.imageshack.us/img33/426/p1100489.jpg

Uploaded with ImageShack.us
07-29-2011, 11:26 PM
stasio

Quote:

Originally Posted by andressergio

for sure i will do a nice face to face on them

for now what i see is

MIVE and UD7

amazing efi bios - normal bios
voltaje regulation amazing - using F3H i have no problems but UD7 takes way more volts
HS near CPU heats a lot - NOT ON UD7
boots like a ferrari - UD7 not its slow at post and boot
small increments of volts on all - UD7 has big jumps
just 1902 gave me problems - UD7 all but F3H

so far thats what i found for now

cheers
Sergio

OK joke at side,I thinking about Maximus IV Gene-Z for my daughter.
07-30-2011, 12:01 AM
zsamz_

Quote:

Originally Posted by stasio

OK joke at side,I thinking about Maximus IV Gene-Z for my daughter.

good choice
i'm thinkin of givin my gene-z to my 9 year old son

for the price its perfection
07-30-2011, 10:13 AM
andressergio

ok guys i will bother a lot as im new lol

tell me it tried my SLI of GTX580 on the NF200 and on native, well native takes my SAME OC i had on NF200 with more vgpu but SCORES MORE

this is on native (on native + NF200 takes 150+ points less)
slots 1 and 3 for me score better i think i heard this if u can confirm me will be awesome

http://img829.imageshack.us/img829/9...1198022001.png

Uploaded with ImageShack.us

cheers all
Sergio
07-30-2011, 11:17 AM
Dumo

Quote:

Originally Posted by andressergio

testing the system :)

Awesome cpu and mive there Andre:up:

Dunno about Z68, but with my B3 MIVE (old bios) maximum multi bios boot was 56X.

For 57X~59X I have to set turbos manually in bios to 57Xs

As long as boot posted past "AE" on post code reader then it good to go with multi you set in bios (same as "4E" on UD7)
07-30-2011, 04:54 PM
andressergio

Quote:

Originally Posted by Dumo

Awesome cpu and mive there Andre:up:

Dunno about Z68, but with my B3 MIVE (old bios) maximum multi bios boot was 56X.

For 57X~59X I have to set turbos manually in bios to 57Xs

As long as boot posted past "AE" on post code reader then it good to go with multi you set in bios (same as "4E" on UD7)

thanks dumo i was very lucky indeed

thanks for the info also i was wondering what i touched that couldnt boot over x56 lol guess its that

cheers
Sergio
07-31-2011, 10:39 AM
andressergio

well

swaped the UD7, MIVE took place now, have to cut 2 tubes as socket its 1,5cms to the right but all went good

http://img20.imageshack.us/img20/1041/p1100587t.jpg

my 24/7

http://img818.imageshack.us/img818/2121/5ghz1png.png

Uploaded with ImageShack.us

hope you like it

cheers to all
Sergio
07-31-2011, 10:48 AM
the_real_7

Back on track

Back on track now after switching from UD7 to MIVE , after reloading and all im happy . . even though this board is almost same with v core per oc , the llc control is much much better . . posting some shots of my 24/7 prime pass , so for meantime the v core looks high , but for 3d benching and memory benching all i need way less v core .
Was the switch worth it ? Hell Yea this is the 5 reason why I think " opinion " :up:
1. Overall better support of board , bios updated regular
2. For me memory stability is better , board is way less stressed at 2133 cmd 1 , makes figuring a stable overclock a breeze
3. Run lower vcore idle cuase llc control is much better , no silly 1 - 10
4. pci express lanes have more space for multi gpu " no more hot crossfire sandwich " which ud7 sacrificed a space for a outdated legacy pci
5. rog overclocking from remote devices iphone android laptop , now i overclock while at work and i can reboot main pc from remote rog thru team viewer on bsod probelms
Bonus : Hot ass looking board red mania lol , lot of light's if thats your thing :clap:

http://i84.photobucket.com/albums/k7...MYSETTINGS.png

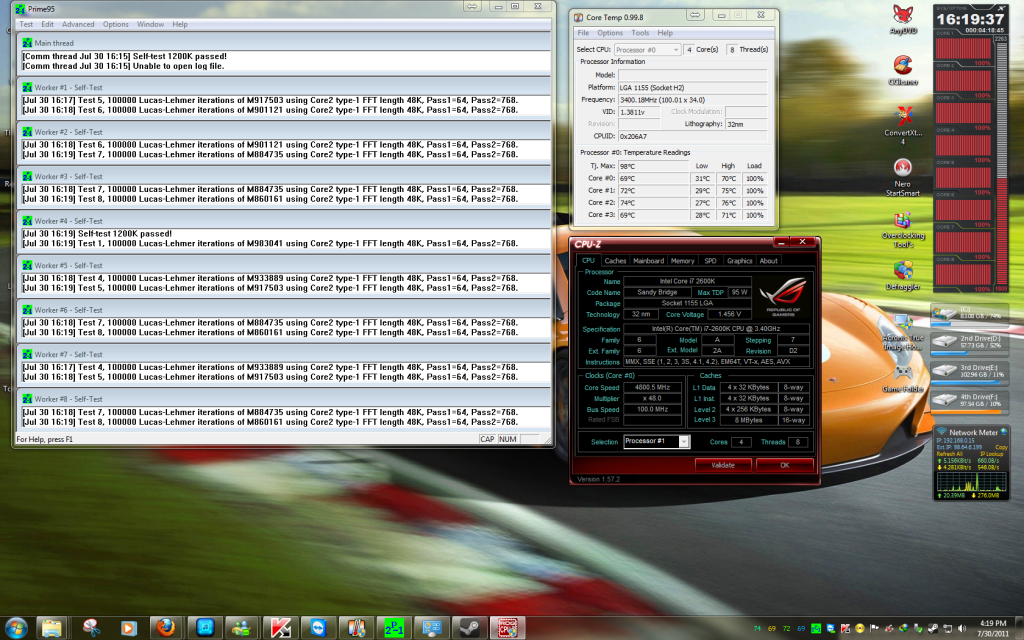

http://i84.photobucket.com/albums/k7...e/Untitled.png

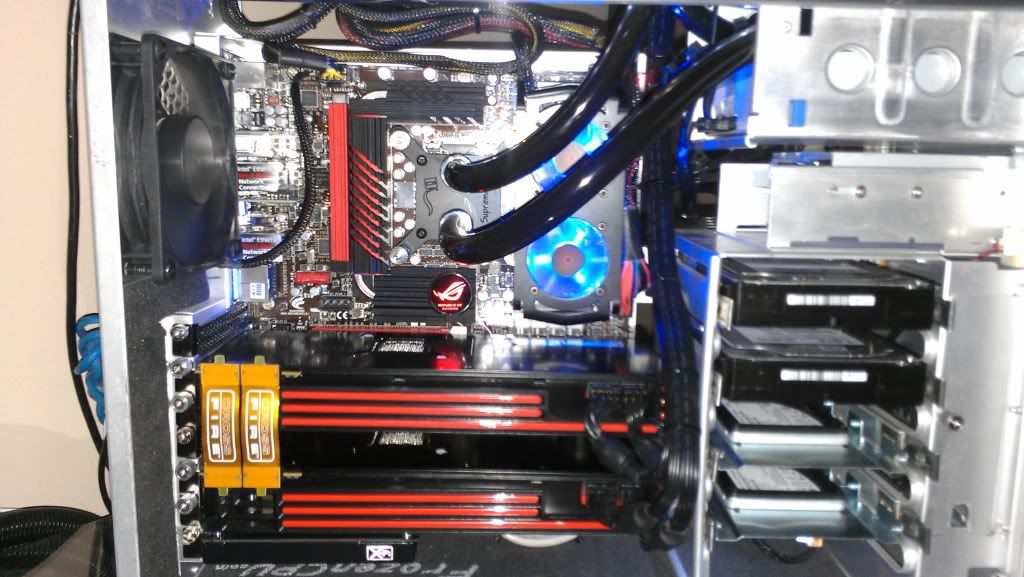

http://i84.photobucket.com/albums/k7...e/IMAG0035.jpg

http://i84.photobucket.com/albums/k7...e/IMAG0044.jpg
07-31-2011, 10:50 AM
andressergio

Quote:

Originally Posted by the_real_7

Back on track now after switching from UD7 to MIVE , after reloading and all im happy . . even though this board is almost same with v core per oc , the llc control is much much better . . posting some shots of my 24/7 prime pass , so for meantime the v core looks high , but for 3d benching and memory benching all i need way less v core .
Was the switch worth it ? Hell Yea this is the 5 reason why I think " opinion " :up:
1. Overall better support of board , bios updated regular
2. For me memory stability is better , board is way less stressed at 2133 cmd 1 , makes figuring a stable overclock a breeze
3. Run lower vcore idle cuase llc control is much better , no silly 1 - 10
4. pci express lanes have more space for multi gpu " no more hot crossfire sandwich " which ud7 sacrificed a space for a outdated legacy pci
5. rog overclocking from remote devices iphone android laptop , now i overclock while at work and i can reboot main pc from remote rog thru team viewer on bsod probelms
Bonus : Hot ass looking board red mania lol , lot of light's if thats your thing :clap:

great rig Tony we did the move almost on same time lol

enjoy it like im doing

cheers !
Sergio
07-31-2011, 10:57 AM
the_real_7

Quote:

Originally Posted by andressergio

great rig Tony we did the move almost on same time lol

enjoy it like im doing

cheers !
Sergio

Hey thanks man ! ! ! Im enjoying for sure now

Ya man we both switched , took us a little convincing now didn't it lol . . . have to give zsams thanks for the push to a great mobo
07-31-2011, 11:03 AM
andressergio

Quote:

Originally Posted by the_real_7

Hey thanks man ! ! ! Im enjoying for sure now

Ya man we both switched , took us a little convincing now didn't it lol . . . have to give zsams thanks for the push to a great mobo

yeah so to l0uds3 that also told me so

thanks !
07-31-2011, 11:28 AM
kagula323

Quote:

Originally Posted by andressergio

well on my UD7 boot at107bclk was easy here i dont get the skews now but i will

for now im happy with this

http://img42.imageshack.us/img42/844/pi3q.png

Uploaded with ImageShack.us

nice cpu andressergio and welcome to the asus mive thread :D
what is the max cpu multiplier your cpu boots in windows with cpu pll overvoltage disabled?
07-31-2011, 11:30 AM
l0ud_sil3nc3

Quote:

Originally Posted by andressergio

yeah so to l0uds3 that also told me so

thanks !

smooth board isn't it:up:

I can't give my UD7 away:(
07-31-2011, 11:41 AM
the_real_7

Quote:

Originally Posted by l0ud_sil3nc3

smooth board isn't it:up:

I can't give my UD7 away:(

sheeesh your telling me ;/
07-31-2011, 02:11 PM
zsamz_

Quote:

Originally Posted by the_real_7

Hey thanks man ! ! ! Im enjoying for sure now

Ya man we both switched , took us a little convincing now didn't it lol . . . have to give zsams thanks for the push to a great mobo

you gigabut guys :rofl::ROTF:
i know a good thing when i see it
and 4 sure asus owning gigabut on p67 and z68
enjoy the board bud:up:

if its good i always say its good if its :banana::banana::banana::banana: .....
some use a :banana::banana::banana::banana: board n think its good lol and still use it lol

Quote:

Originally Posted by l0ud_sil3nc3

smooth board isn't it:up:

I can't give my UD7 away:(

i gotta say took me 2 days to sell the POS UD7
glad i didnt touch it after it came from rma
or i mighta been stuk with it lol
07-31-2011, 02:14 PM
andressergio

Quote:

Originally Posted by kagula323

nice cpu andressergio and welcome to the asus mive thread :D
what is the max cpu multiplier your cpu boots in windows with cpu pll overvoltage disabled?

thanks mate lol i didnt test when i saw that it was posting and trying to enter win at x58 and over lol i will test for ya

cheers !
Sergio
07-31-2011, 02:15 PM
andressergio

Quote:

Originally Posted by l0ud_sil3nc3

smooth board isn't it:up:

I can't give my UD7 away:(

amazing really thanks mate

cheers !
Sergio
07-31-2011, 05:59 PM
psyside

2 Attachment(s)

USB Issues...

--------------------------------------------------------------------------------

Today, i tried to reinstal my OS in order to get a totaly stable system before overclocking. So long story short, after the installation started, and when the "loading windows files" part ended, my keyboard and mouse lost power, like they where turned off....so i rebooted, and the issues was still there. So after that i entered BIOS, load optimized defaults, and restarted. Then the mouse and keyboard started to work again, but only till i run windows update, (SP1) then after the installation of SP1 was over, i had to restart in order to complete it, and after the first bootup the mouse and keyboard disappeared again, so i couldn't use them, the issues appear again, the lights turn off and thats it. Oh and yes i tried setting USB controller from PCH to NEC no use also...

'Now i cleared cmos, and load optimized defaults, selected Raid mode in sata options (i got 2x F3 in raid0) and i have enableled hot plug on my C300 in BIOS, everything else is stock in BIOS, but when i come to windows and even now my keyobard and mouse work, i wonder why does device manager show ! marks under every usb device, even after windows installed the drivers ?

Here is screenshot,

Attachment 118486

I must note that 4 days ago, i had anthoer error, Power Surge on USB hub port ,

Attachment 118487

note that this is not my picture, but you get the idea.

Tried to click on both options reset and close no luck at all the message appears again after 5-10 minutes i really dont know what should i do i am worried about this problem i tried to plug my keyboard and mouse to other usb ports i was still getting this error...clear cmos solved the problem, but now i got the other issues mouse and keyboard turned off 3 times in a row...

So this is clearly an Asus drivers/usb controler isues, and now i want to know is there anyway to sort this or i will have to RMA the board? other then this the mobo is almost perfect, please guys if anyone know how to solve this post back, thanks.

P.S. Im using 1850 BIOS, WIn7 was fresh installed, when my mouse and keyobard turned off, the USB power surge error was on my previous WIn7 installation.
07-31-2011, 06:27 PM
zsamz_

did you install the usb3 driver?

the way i see it somethin went wrong during install
i would reinstall o/s;)
07-31-2011, 07:42 PM
andressergio

for those who seek a very nice 2x4 kit

you have the mushkins 2133 9-11-10-28 amazing ram but dont scale its just that

http://img405.imageshack.us/img405/1280/p1090354.jpg

http://img5.imageshack.us/img5/2742/5ghz.png

and

patriot viper 2 2000 9-11-9-27 they do scale very well on stock vdimm 2133 9-11-9-27 1T

here

http://img835.imageshack.us/img835/3280/p1100576p.jpg

http://img35.imageshack.us/img35/2121/5ghz1png.png
07-31-2011, 07:43 PM
andressergio

Quote:

Originally Posted by psyside

USB Issues...

--------------------------------------------------------------------------------

Today, i tried to reinstal my OS in order to get a totaly stable system before overclocking. So long story short, after the installation started, and when the "loading windows files" part ended, my keyboard and mouse lost power, like they where turned off....so i rebooted, and the issues was still there. So after that i entered BIOS, load optimized defaults, and restarted. Then the mouse and keyboard started to work again, but only till i run windows update, (SP1) then after the installation of SP1 was over, i had to restart in order to complete it, and after the first bootup the mouse and keyboard disappeared again, so i couldn't use them, the issues appear again, the lights turn off and thats it. Oh and yes i tried setting USB controller from PCH to NEC no use also...

'Now i cleared cmos, and load optimized defaults, selected Raid mode in sata options (i got 2x F3 in raid0) and i have enableled hot plug on my C300 in BIOS, everything else is stock in BIOS, but when i come to windows and even now my keyobard and mouse work, i wonder why does device manager show ! marks under every usb device, even after windows installed the drivers ?

Here is screenshot,

Attachment 118486

I must note that 4 days ago, i had anthoer error, Power Surge on USB hub port ,

Attachment 118487

note that this is not my picture, but you get the idea.

Tried to click on both options reset and close no luck at all the message appears again after 5-10 minutes i really dont know what should i do i am worried about this problem i tried to plug my keyboard and mouse to other usb ports i was still getting this error...clear cmos solved the problem, but now i got the other issues mouse and keyboard turned off 3 times in a row...

So this is clearly an Asus drivers/usb controler isues, and now i want to know is there anyway to sort this or i will have to RMA the board? other then this the mobo is almost perfect, please guys if anyone know how to solve this post back, thanks.

P.S. Im using 1850 BIOS, WIn7 was fresh installed, when my mouse and keyobard turned off, the USB power surge error was on my previous WIn7 installation.

u have to install NEC USB driver
07-31-2011, 08:55 PM
zsamz_

i have the patriots and they need cas10 for 2133
i topped off @ 2160mhz

not much of a difference in everest bench;)

but they were pushed hard on rex n didnt die:rofl:
07-31-2011, 09:52 PM
kagula323

Quote:

Originally Posted by andressergio

thanks mate lol i didnt test when i saw that it was posting and trying to enter win at x58 and over lol i will test for ya

cheers !
Sergio

please do
07-31-2011, 10:07 PM
psyside

Quote:

Originally Posted by andressergio

u have to install NEC USB driver

Thanks for the replay.

Dude, before i had the NEC usb driver, and the issue appear, now i dont have and i got no problems. expect for 1 time in BIOS the mouse went off, but keyboard stayed on, and after i restart (get back in windows) the mouse started to working fine. Now i wonder is this an driver issue or maybe faulty USB ports/mobo? :( you guys got any idea how to test my mobo for short? (this was ponited from another user as a possible cause)

Quote:

Originally Posted by zsamz_

did you install the usb3 driver?

the way i see it somethin went wrong during install
i would reinstall o/s;)

It was clean install of OS, i just installed it and that happend, (mouse and keyobard went off) but before i also had "power surge on usb hub port" error, on my previous OS as well. Thanks for your replay.

Please guys, post back any other ideas/info thanks again.
08-01-2011, 12:06 PM
donmarkoni

@psyside
What USB ports are you using? I had problems (stuff disappearing) when I was using USB3 ports 5-6 and 7-8. Then I moved to ports 1-2 and 3-4 (closer to audio out) and never had problems again.
08-01-2011, 01:35 PM
andressergio

Quote:

Originally Posted by kagula323

nice cpu andressergio and welcome to the asus mive thread :D
what is the max cpu multiplier your cpu boots in windows with cpu pll overvoltage disabled?

sorry for the late reply mate, it dont need it till x52 then yes

cheers !
Sergio
08-01-2011, 06:57 PM
psyside

Quote:

Originally Posted by donmarkoni

@psyside
What USB ports are you using? I had problems (stuff disappearing) when I was using USB3 ports 5-6 and 7-8. Then I moved to ports 1-2 and 3-4 (closer to audio out) and never had problems again.

Atm i'm using the ones closest to the audio panel, right above the audio, but i dont think its about ports, its more like controller/driver issue but if it is drivers issue then how the hell the mouse went off in BIOS,? something is terrible wrong on this mobo, tbh i never had my mouse or keyboard disappear, like you...they only lost power, (the lights went off and they where unusable) like they where diconnected.

And no i dont think i can rma it, because after they replug everything the mobo will work fine during their testing, because repluging everything seems like fixing the issues for short periods (few days) so i cant really point or prove my problems in order to get replacement, they will most prooly never experience the issue and will send my mobo back as a fully working one, instead of RMA :(
08-01-2011, 08:43 PM
andressergio

guys i cant make my eSATA ports work, what do i have to enable or install ?

***solved have to enabled JMB on bios

cheers !
Sergio
08-02-2011, 12:37 PM
andressergio

well i started testing BCLK so far its beating my UD7 so easy i cant believe it...

108 x50 using skew drive 1,04+ and bclk skew at 0

http://img809.imageshack.us/img809/4410/5400108bclk.png

Uploaded with ImageShack.us
08-02-2011, 05:35 PM
zsamz_

Quote:

Originally Posted by andressergio

well i started testing BCLK so far its beating my UD7 so easy i cant believe it...

108 x50 using skew drive 1,04+ and bclk skew at 0

duhhhhh

told ya ud7 is crap long ago
08-02-2011, 05:50 PM
andressergio

Quote:

Originally Posted by zsamz_

duhhhhh

told ya ud7 is crap long ago

and there goes zsamz lol
08-03-2011, 04:19 AM
the_real_7

Quote:

Originally Posted by andressergio

well i started testing BCLK so far its beating my UD7 so easy i cant believe it...

108 x50 using skew drive 1,04+ and bclk skew at 0

http://img809.imageshack.us/img809/4410/5400108bclk.png

Uploaded with ImageShack.us

Nice stuff now your giving that good chip some justice :0) some mive justice . . .
08-03-2011, 04:20 AM
the_real_7

Quote:

Originally Posted by andressergio

and there goes zsamz lol

he really pissed at giga lol
08-04-2011, 10:30 AM
bro20000

New bios

MaximusIV-Extreme-ASUS-1902.ROM

Here http://91.121.148.119/downloads/BIOS/
08-04-2011, 11:38 AM
donmarkoni

Well, it's not so fresh, it's two weeks old. :D

Good BIOS, try it. :up:
08-04-2011, 12:58 PM
kagula323

Quote:

Originally Posted by andressergio

sorry for the late reply mate, it dont need it till x52 then yes

cheers !
Sergio

thanks sergio ... have fun with your golden cpu :)

Show 100 post(s) from this thread on one page

All times are GMT -8. The time now is 11:21 PM.

XtremeSystems
