X1800 Xl = Wow!

Here are the final overclocks with stock cooler. Core needed 1.225v to reach 628. 1.2v would give lockups. 648 @ 1.25 would throttle down to 500 core. The reason I know this is because @ 628 core fill rate in 3dmark 01 was 9800 MP/sec, as expected. But, at 648 core, fill rate in 01 was just 7700 MP/sec, something a 500 core XL would likely do. VPU recover WAS disabled.

700 core gave immediate lock/black screen at voltage up to 1.3v, just too much heat for the little stock cooler.

Memory voltage is at stock (1.9), pretty amazing i say. I tried going to 800mhz, but no matter what volage, 1.9, 1.95, 2.0 or 2.05 I got artifacts. Again, just too much heat.

Still amazing how the XL needs LESS voltage to reach XT levels.

So, unless I get better cooling 1550 is max mem will do. On the core however, I could prolly get higher, but it already reaches 72'C at load and there is bug at 648 so Im gonna wait till official drivers and compatible ATI tool are released.

Also, for those getting X1800 XL, if you want CCC to display correct temps, you cant have the overclocking tool from driverhaven open at the same time.

Im sure score would be higher if I had one of those overclocked FX-57 everyone here seems to have. :banana:

*edit: idle temp has settled @ 55'C, at 100% fan of course.


http://img458.imageshack.us/img458/6...44585fp.th.jpg

Very nice results - You've just about convinced me to press the order button. If I buy one tonight, it's your fault and I'm giving my wife your phone number. :slapass:

nice card m8 !
ati silencer or water soon ?

edit : ATI control center work with X850 temp ? (modded x800gto2)

Quote:

---

Originally Posted by Supertim0r

nice card m8 !
ati silencer or water soon ?

edit : ATI control center work with X850 temp ? (modded x800gto2)

---

im not much of a xtreme ocer, so ill prolly just buy a silencer when it comes out.

edit: i dont know.

quite impressive for a single card.

Any chances for a pic of the core?

Quote:

---

Originally Posted by LexDiamonds

Any chances for a pic of the core?

---

I would but ive never removed stock HSF assembly and I dont wanna do it till i get better cooling like silencer. when ati tool gets out, or if wizzard will send me it, i can see if its A14 or A15. thats what u wanna know right?

Quote:

---

Originally Posted by gunit

I would but ive never removed stock HSF assembly and I dont wanna do it till i get better cooling like silencer. when ati tool gets out, or if wizzard will send me it, i can see if its A14 or A15. thats what u wanna know right?

---

http://www.xtremesystems.org/forums/...id=39153&stc=1

Quote:

---

Originally Posted by LexDiamonds

Any chances for a pic of the core?

---

you mean like this... clocks almost identical to his... 630 core 750 mem :)

http://www.baughman-eshbach.com/imag...i-DSCN1463.JPG

I dont understand how you guys get such clear pictures up close. Anything closer then like 12 inches and it blurs out. =(

Quote:

---

Originally Posted by DamienKC

I dont understand how you guys get such clear pictures up close. Anything closer then like 12 inches and it blurs out. =(

---

MACRO!!!!

Every Camera has one:)

Took some quick pics. Hope this helps:)

I have this one
http://www.chw.cl/usuarios/juanflait...fotos/core.jpg

605/715
1.175v/1.9v

Crappy lent Venice roofed out in water :stick:

Nice pics guys... sexy stuff.

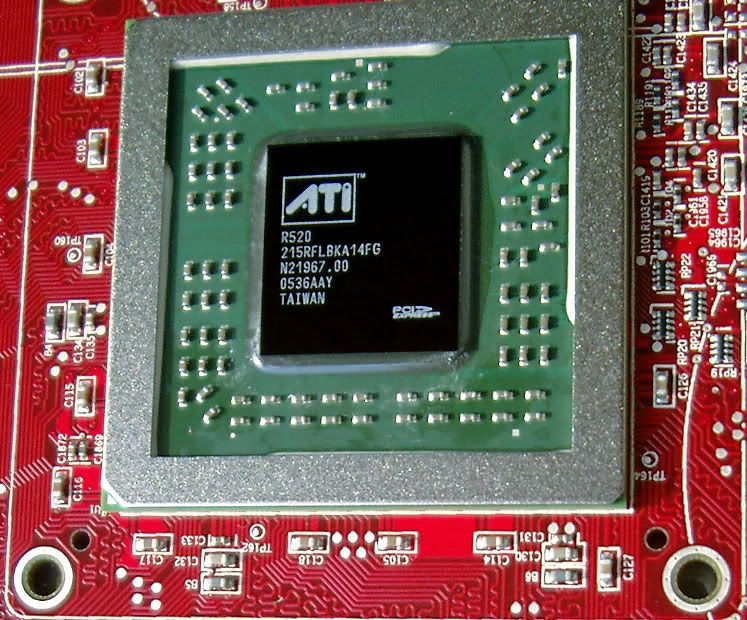

Heres mine
http://img.photobucket.com/albums/v3...R520-Core2.jpg

661/711
1.225/1.20v

could u guys check multi fill rate at 648 core in 01 and pleae tell me what u get?

OK guys, i finally got around to OCing this baby.
All went well, but i soon realised that u need to up the voltage once u go past the 600mhz zone.

I used stock cooling. AIR.
Should be able to push it even higher. But i decided to stop....for now.

Here are my results.

http://img.photobucket.com/albums/v3...k05625-700.jpg

BTW. I have a GeCube, so it seems that all x1800XL are pretty standard.

wow sick cards.

I see same numbers when looking at forums.
Seems to be uberclockers all of them.
Why didnt ATI raise clocks on this card ?
Not everyone know thats its a good overclocker.

Quote:

---

Originally Posted by Ubermann

I see same numbers when looking at forums.
Seems to be uberclockers all of them.
Why didnt ATI raise clocks on this card ?
Not everyone know thats its a good overclocker.

---

I some how think the XT delay has more to with the RAM chips than anything else. Other wise it seems the XL's are XT's with different ram and different voltages. Also raising the clock would mean it would be too close to the XT speeds, which we are already getting. I know that their will also 256mb XT versin out.

Just doesn't make sense for ATI to raise clocks.

ehm my Sapphire X1800 XL gets 80 °C hot on stock cooling, what oc tool are u using to manually determine the fan speed and voltage on core?

My core:
http://www.xtremesystems.org/forums/...chmentid=39166

My clocks on unchilled water:
http://www.xtremesystems.org/forums/...chmentid=39167

The memory on mine screams

Nice clocks guys :toast:

Quote:

---

Originally Posted by EmineM

ehm my Sapphire X1800 XL gets 80 °C hot on stock cooling, what oc tool are u using to manually determine the fan speed and voltage on core?

---

I use ATI Tool to check voltages and have speed. ATI Tool can change voltages but not clocks atm.

I used this tool to change clocks and voltages. It also has a fan speed reading.

http://www.driverheaven.net/zardon/overclocker.zip

@ Fugger, Nice OC. :toast:

But could u plz give us the voltages u using? This will help us to achieve better clocks. Also the memory has two voltage setting...core mem voltage and I/O mem voltage. Did u adjust both or just the core mem clock?

Thanx

I got my card in. But what OC tool are u guy's using ? i got somethin of driverheaven but that one dous not seem save for me and my card.

2v~ 2.1v on the memory and up to 1.33v on the core

Im back at stock voltages on Zalman atm.

I finally beat Oppainter :banana: First to kill a X1800 card. I cracked a core :( with a phase change block.
